3D ToF模组
iTof模组用于DMS/OMS领域，能够以135FPS高帧率侦测和追踪移动物体。
• 姿态控制
• 脸部识别
• 近地避障
产品
ToF
测量距离 ······························································· 0.2m-6m (可定制)
分辨率 ····················································································································· 640*480
帧率 ······························································································ TYP 30fps (支持 60fps)
精度 ································································································································· <1cm
视场角（FOV） ······························································································ H.67°x V51°(可定制)
抗环境光能力 ······················································································ 120klux
数据接口 ······················································································ GMSL (MAX96711)
冷启动 ······················································································································· <300ms
工作电压 ··············································································································· 9-16v
工作电流 ··································································································· <300mA
峰值电流 ······················································································································· <1.5A
功耗 ········································································································· <3W
工作温度 ·························································································· -40~85 ℃
存储温度 ··························································································· -40~95 ℃
产品
智 能 安 防
消 费 电 子
自 动 驾 驶
工 业 自 动 化
为什么选择凯普

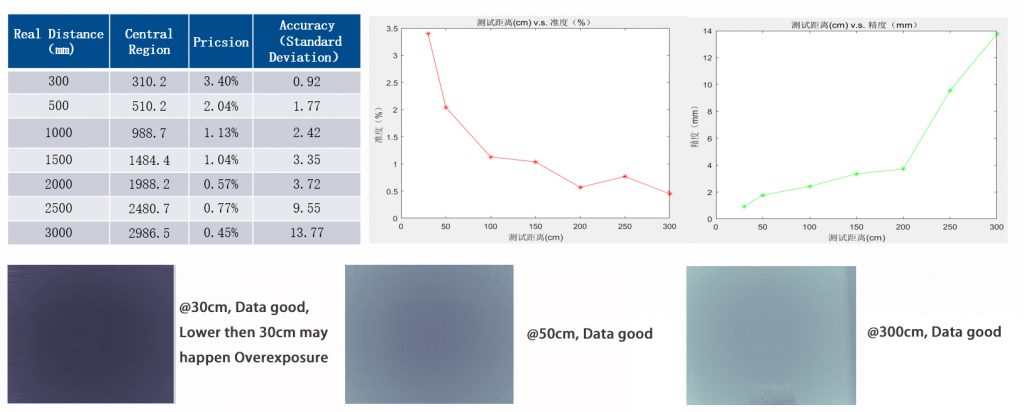

1. 白 平 面 测 试 @ 40MHz
白墙场景，测试距离连续10帧数据，中心区域数据的结果如下表所示。在30厘米至300厘米处，数据正常。当测试距离小于30cm时，会发生一些过度曝光。
2. 曝 光 测 试
在黑纸测试场景中，每个测试距离拍摄10个连续的数据帧，中心数据处理结果如下表所示。
3. 单 行 像 素 测 试
测试对象为白墙，取深度图像第60行、第80行和第120行。
-测试距离约80cm处，相邻像素之间的跳动为毫米级。
-测试距离约150cm处，相邻像素之间的跳动为毫米级。边缘噪声较多跳动约为1cm左右。
-测试距离约200cm处，相邻像素之间的跳动为1cm左右。边缘跳动约为2cm左右。
