Speakers – 凯普电子

扬声器

我司在车用领域的仪表，信号，小型HiFi和Ecall设计，以及在家用，智能音箱和其他领域的设计上，可以提供全频或者信号型的声学方案。我们领先的的宽频高声压扬声器设计使我们的产品特别合适用于低电压的电路设计。

· 定制化的声音和产品结构

· 专业的声学测试和分析

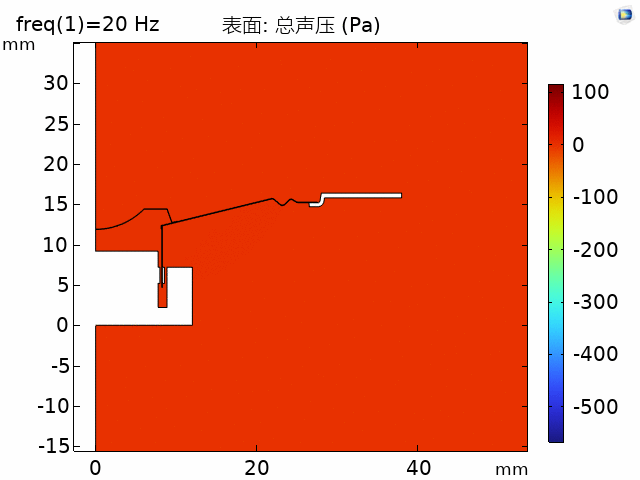

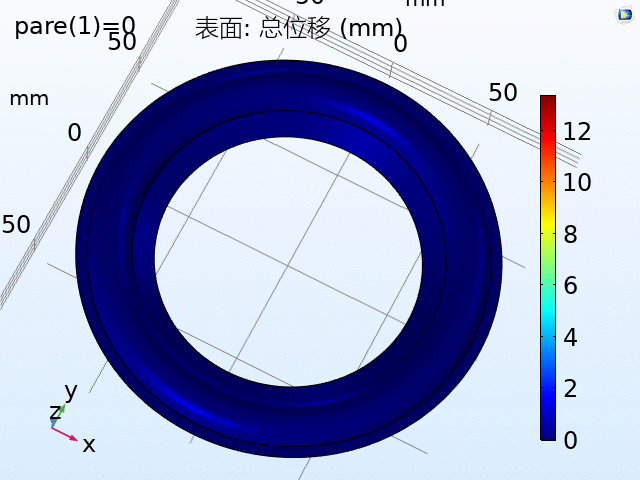

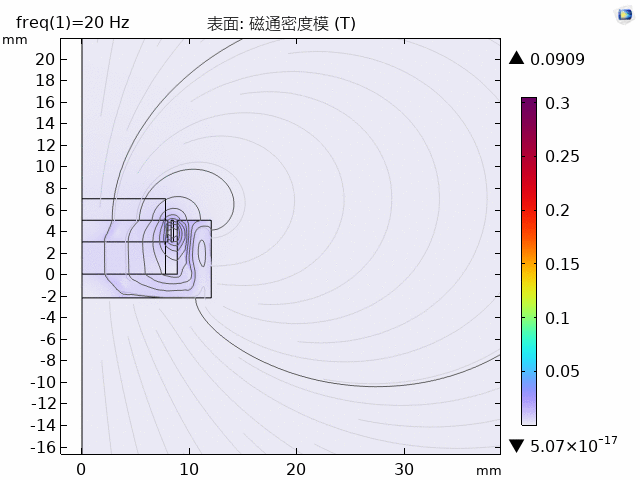

· 仿真设计

产品

e-Call 扬声器

阻抗 ············ 4Ω±20%(1Vrms at 600Hz 时 20℃)
声压级 ···················· 82±2 dB @ 1w/1m
在 500, 800,1500,2000 Hz平均 (20℃)
谐振频率 ····························· 260Hz±20%
频率范围 ······································ Fo ~10KHz
输入功率 ·································· 额定 4W / 最大.8W
失真 ··································· <2.5% 最大. at 1W(2V)
防水等级 ································································ IP52
有效行程 ······················································ 1.3mm
最大行程 ···················································· 2.7mm

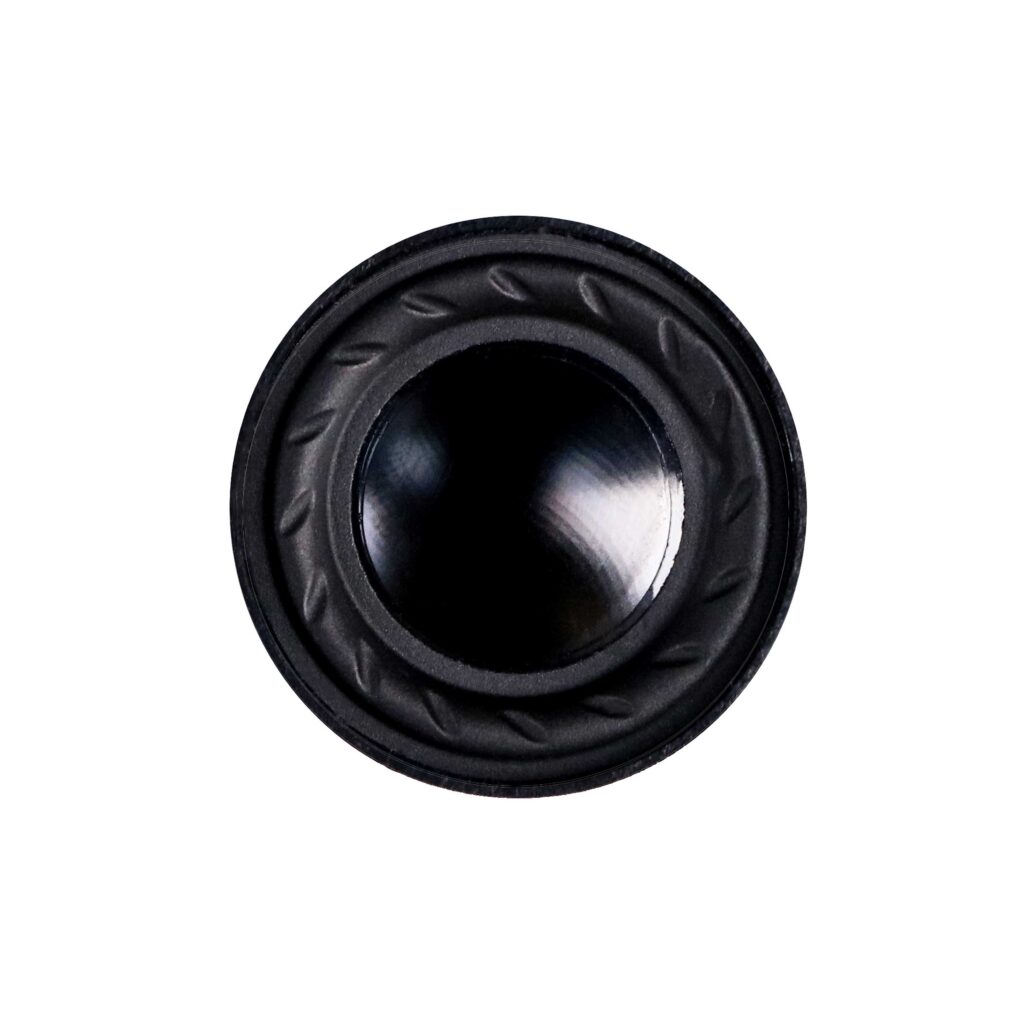

小型 HiFi

阻抗 ·························· 4 Ω±15% (1V at 1000Hz)
声压级 ································ 80±3dB @ 1w/1maverage at 0.6,0.8,1.0,1.2kHz
谐振频率 ························· 300 Hz±20%
频率范围 ······································ F0 ~20KHz
输入功率 ··························· 额定 1.0W/最大. 1.5W
失真 ······················ <5% 最大. 1kHz/2.0Vrms

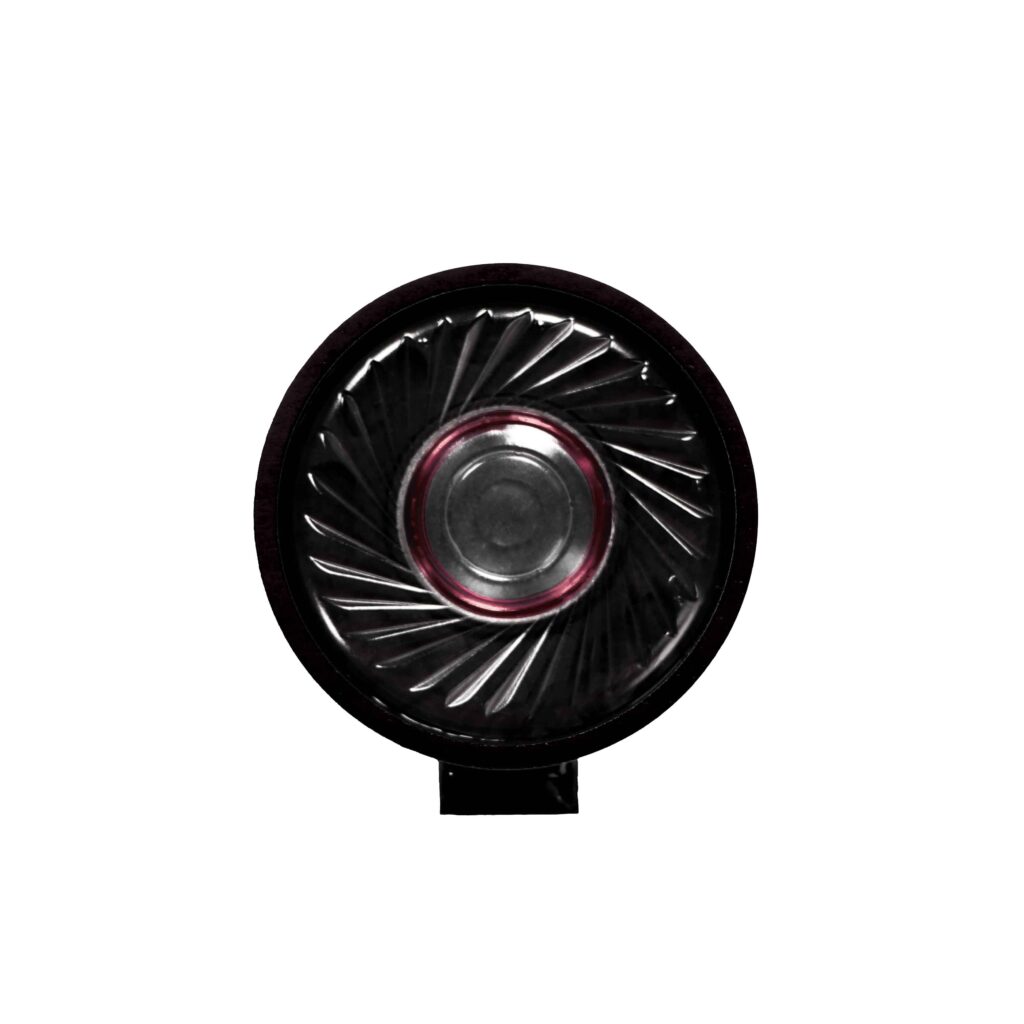

仪表盘

阻抗 ························· 50Ω±15% (1Vrms 时 2KHz)
声压级 ············· 78±3dB @ 0.1W/0.5M 时 1 kHz
谐振频率 ······························ 400 Hz±20%
频率范围 ···································· 400Hz ~17KHz
输入功率 ······························· 额定 0.3W/最大 0.5W
失真 ··································· <5% Max. at 1kHz/0.1w
