无线充电
提供15W和50W充电功率，带内置SE解码芯片。
• 实时通讯
• 温度监控和调整
• OTA 升级
• 自我诊断
• 内置NFC模组
• 过充，过载，超温保护
产品

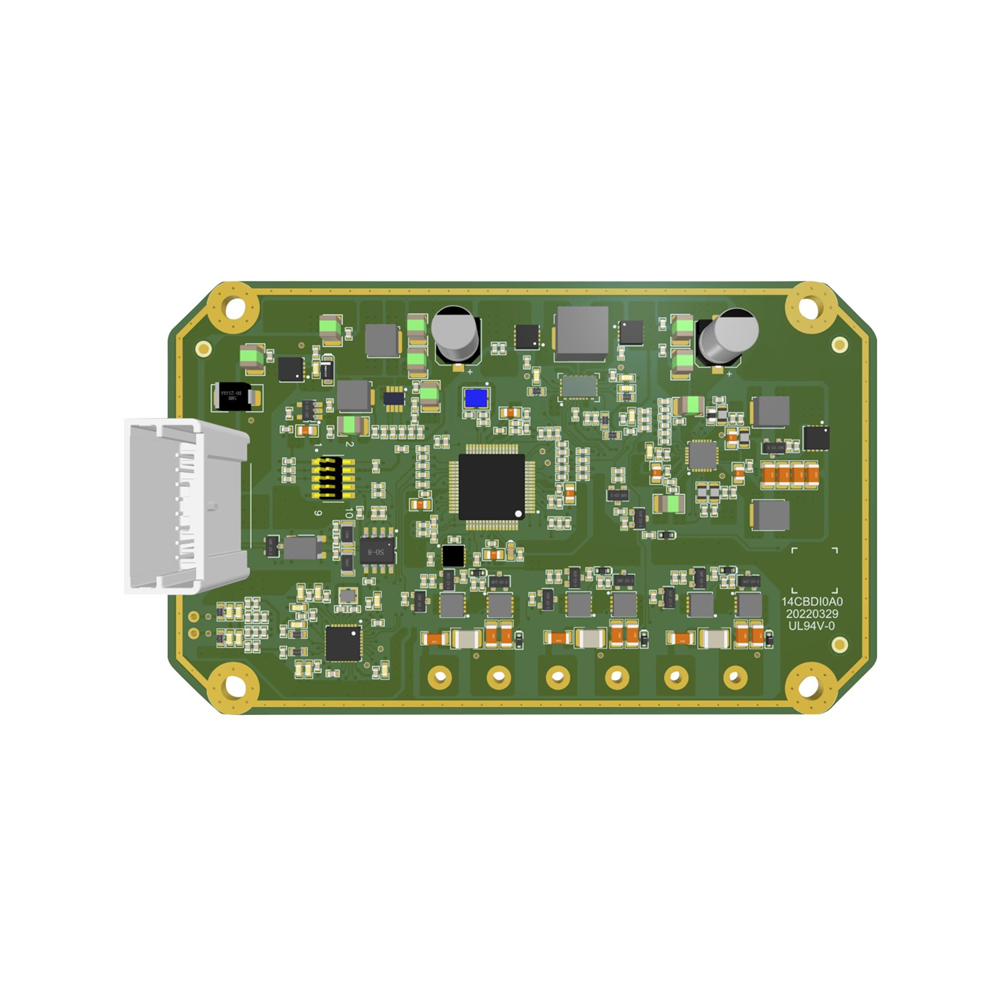

3D 示意图 - 15W
功率 ············································································································ 5W( BPP) 15W(EPP)
Qi协议 ·························································································································· Qi 1.2.4
线圈拓扑 ······························································································· MP- A13 / MP- A9
工作频率 ····················································································· 110k Hz~150KHz
工作电压 ············································································································· 9V~16V
额定工作电压 ··································································································· 13.5V
最大充电功率 ······ 15W (指接收端接收到的功率)
工作温度 – ························································································· 40℃~85℃
充电工作温度 ··································································· – 30 ~ 70 °C
过温保护 ·················································································· > 50 °C
充电效率 ··········································································································· >75%
功耗（待机静态电流） ··········································· 100uA
环境测试规范 ···························································· ISO- 16750- 2
EMC等级 ························································································································ 4+
EMC测试规范 ·············· CISPR 25, ISO 7637 – 2, ISO 11452, ISO 10605

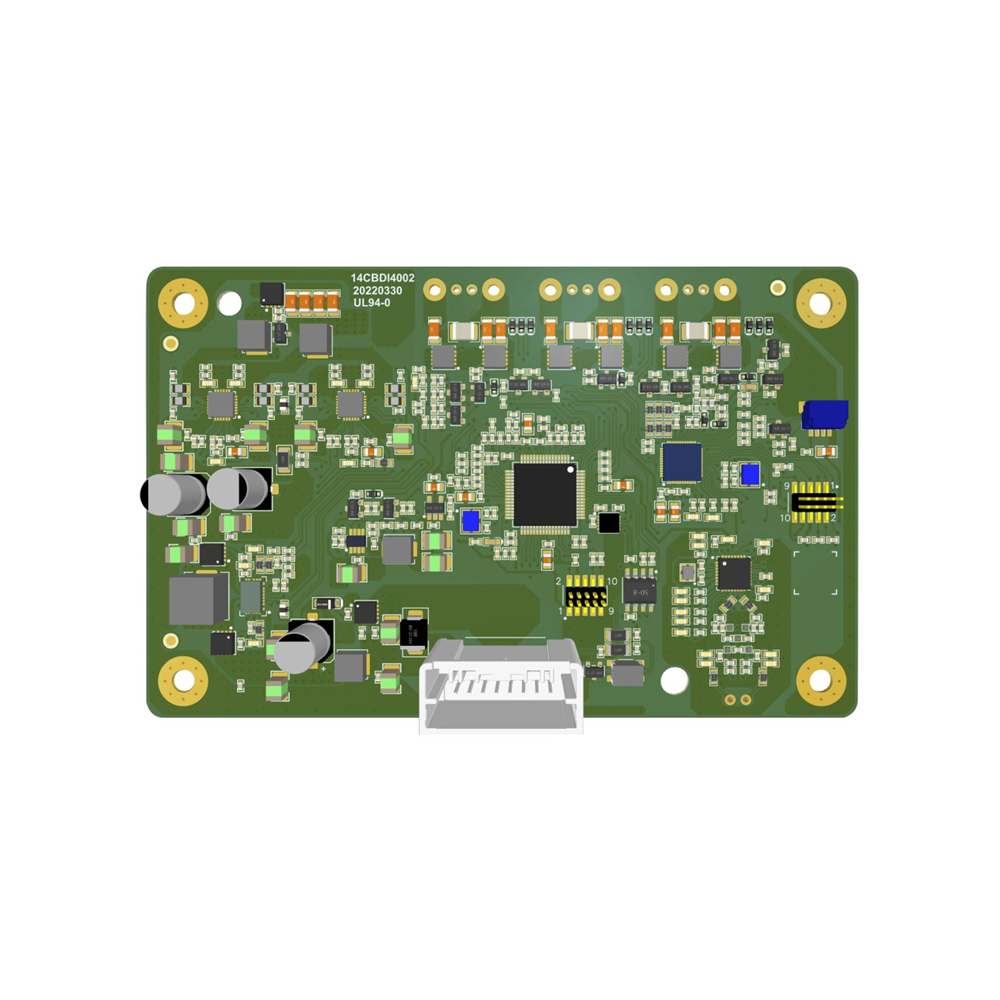

3D 示意图 - 50W
功率 ··············································· 5W( BPP), 15W(EPP), 50W(华为, 小米, OPPO)
Qi协议 ············································································································ Qi 1.2.4/Qi 1.3
专有快速充电协议 ·················································· 华为, OPPO, 小米
线圈拓扑 ······························································································ MP- A13 / MP- A9
工作频率 ···················································································· 110k Hz~150KHz
工作电压 ············································································································ 9V~16V
额定工作电压 ·································································································· 13.5V
最大充电功率 ···· 50W (指接收端接收到的功率)
工作温度 ························································································ – 40℃~85℃
充电工作温度 ·································································· – 30 ~ 70 °C
过温保护 ················································································· > 50 °C
充电效率 ·········································································································· >75%
功耗（待机静态电流） ·········································· 100uA
环境测试规范 ··························································· ISO- 16750- 2
EMC等级 ························································································································ Class 4+
EMC测试规范 ·············· CISPR 25, ISO 7637 – 2, ISO 11452, ISO 10605
应用

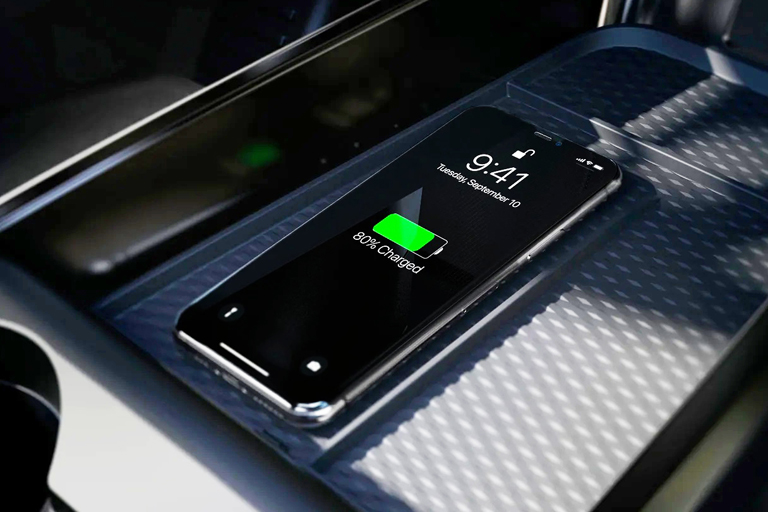

车 载
家 用
桌 面
为什么选择凯普

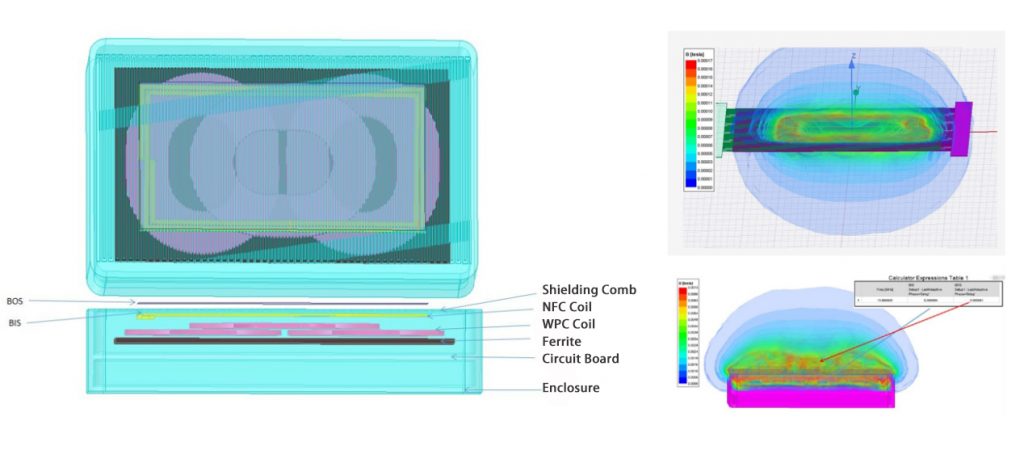

1.磁场模拟

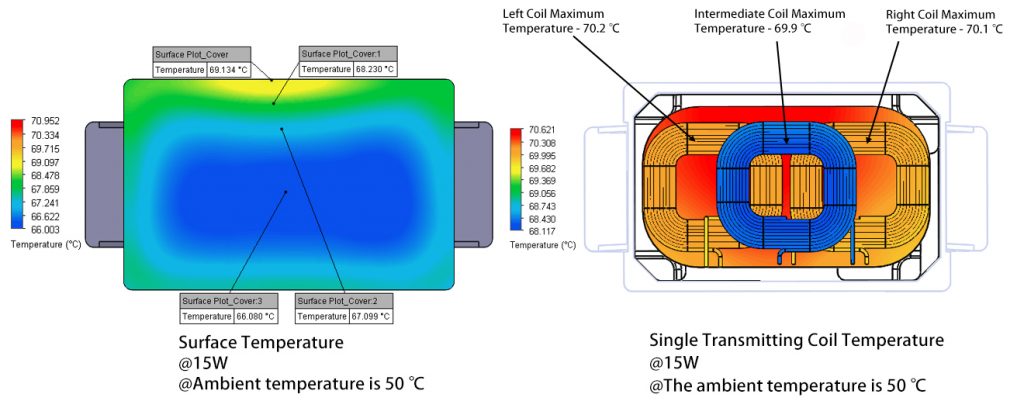

2.散热模拟
3. 实验能力
研发团队
品质检测
