AVAS
采用多种AVAS设计方案，从独立PCBA设计到取消PCBA设计的嵌入式软件方案，我司均能为客户提供个性化的解决方案。
• 音效设计和音效适配
• OTA升级
• 个性化功能适配（支持露营模式，寻车模式，迎宾音等扩展方案）
产品

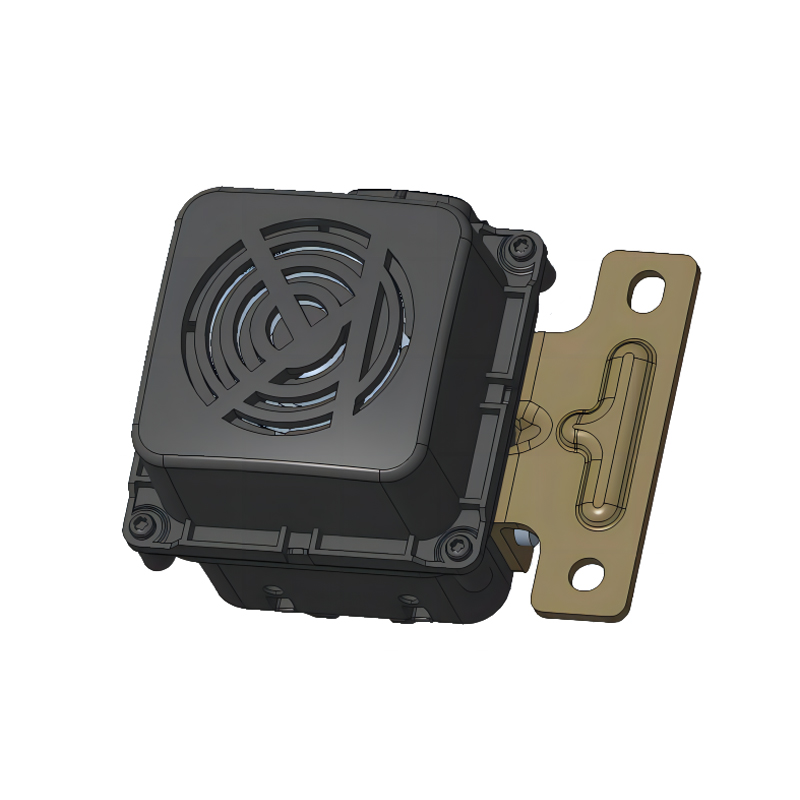

迎宾集成 AVAS-0118A
系统工作电压 ···································································· DC 9V～16V
额定工作电压 ················································································· DC 12V
静态电流 ··························································································· ≤ 0.5mA
工作电流 ································································································ ＜ 2A
声压级 ································· ≤75dB@2m,1KHZ(可定制)
额定阻抗 ········································································································ 8Ω
谐振频率 ··················································································· 280±15%
额定功率 ········································································································ 5W/10W
失真 ······················································································································· ≤5%
CAN诊断服务层 ··································································· 支持
升级方式 ····································································································· FOTA
刷新 ·································································································· Flash Bootloader
防护等级 ········································································································ IP67

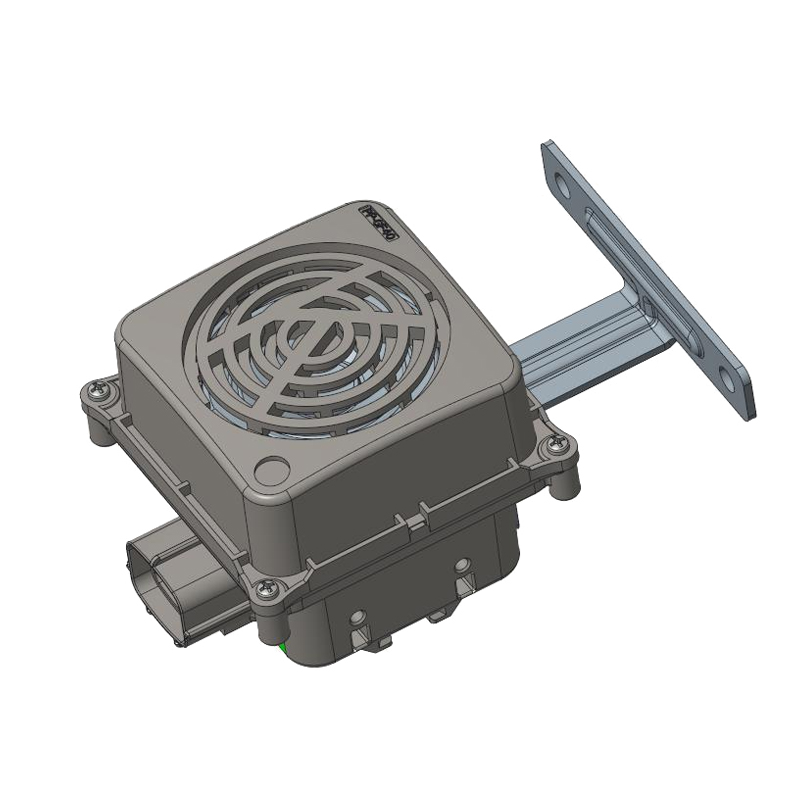

传统 AVAS-0041A
系统工作电压 ····································································· DC 9V～16V
额定工作电压 ·················································································· DC 12V
静态电流 ································································································ ≤ 1mA
工作电流 ································································································ ＜ 2A
声压级 ································································ ≤75dB@2m,1KHZ
额定阻抗 ······································································································· 8Ω
额定功率 ······································································································· 5W/10W
失真 ································································································································· ≤10%
CAN诊断服务层 ······························································ ISO14229
CAN总线通信波特率·········500kbs & 125kbs, ISO-11898-2
防护等级 ······································································································ IP67
为什么选择凯普
1. 仿 真 模 拟

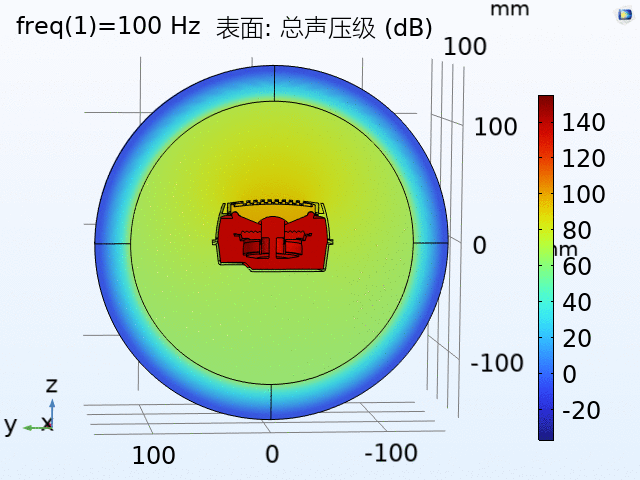

声压级
磁通密度

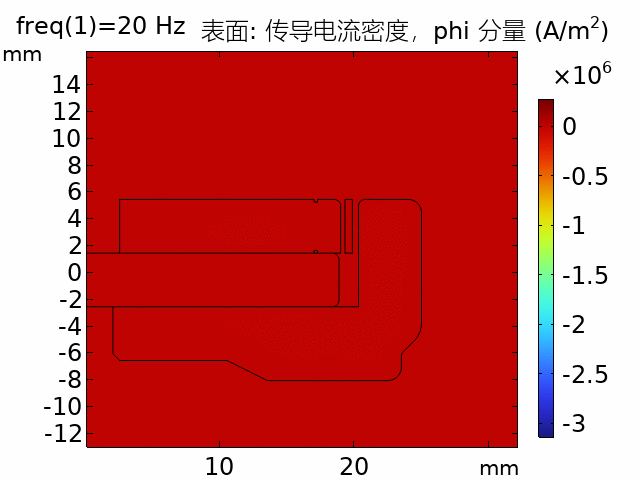

涡流分布
2. 结 构 分 析
位移分布

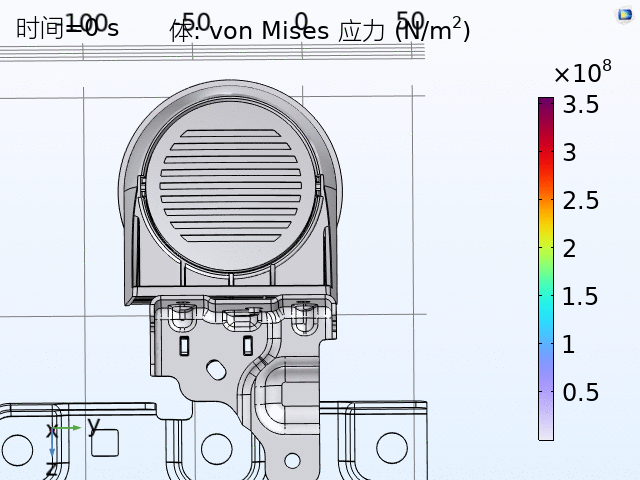

应力分布

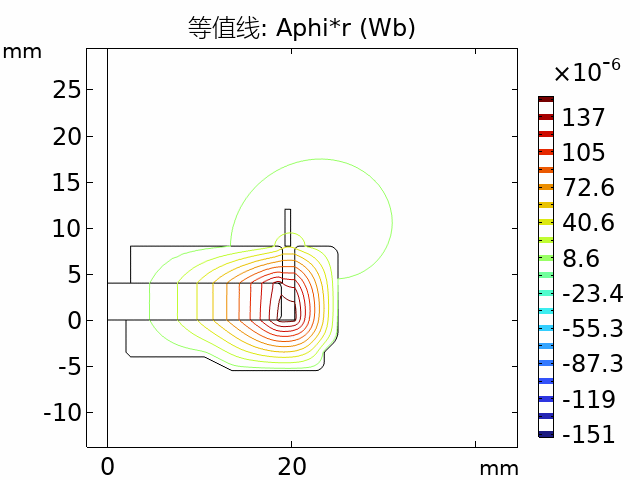

磁等值线
3. 实 验 能 力

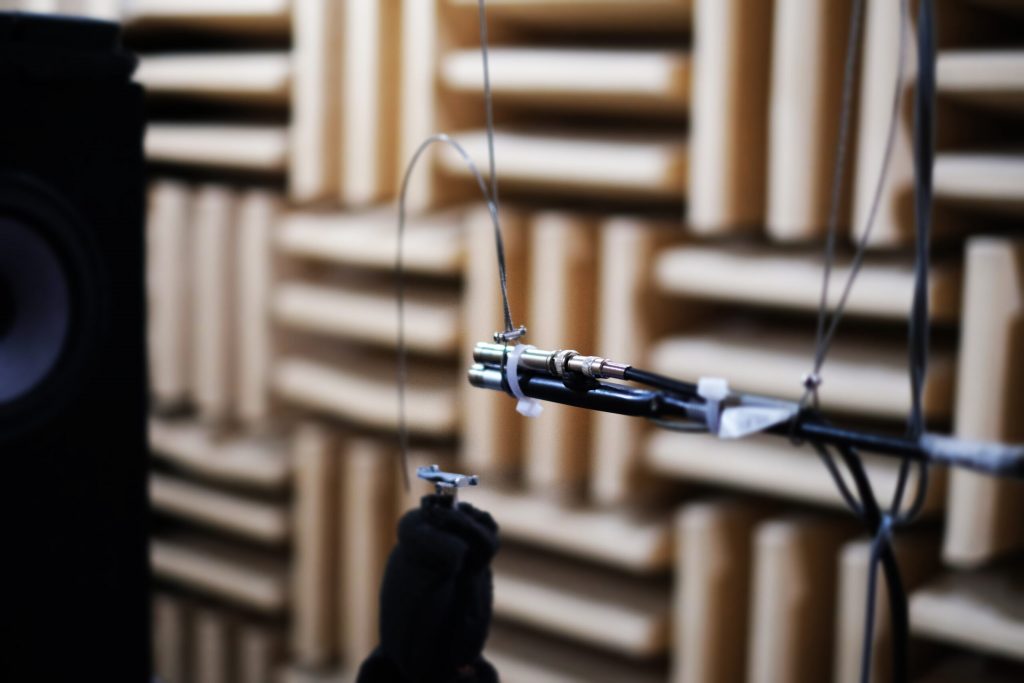

消声室
研发设备
品质测试

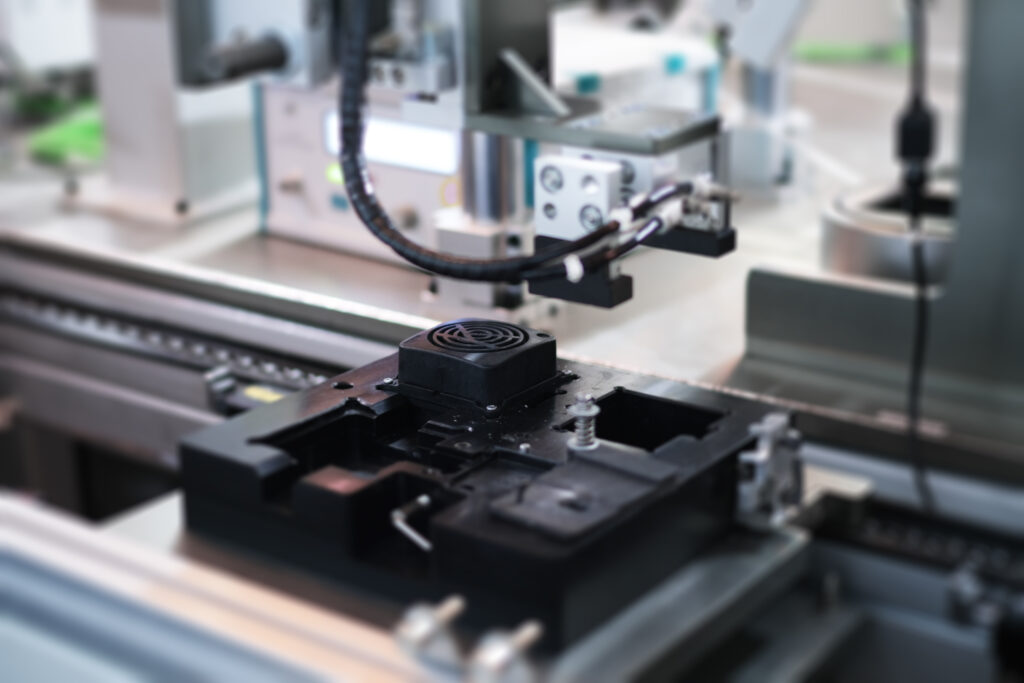

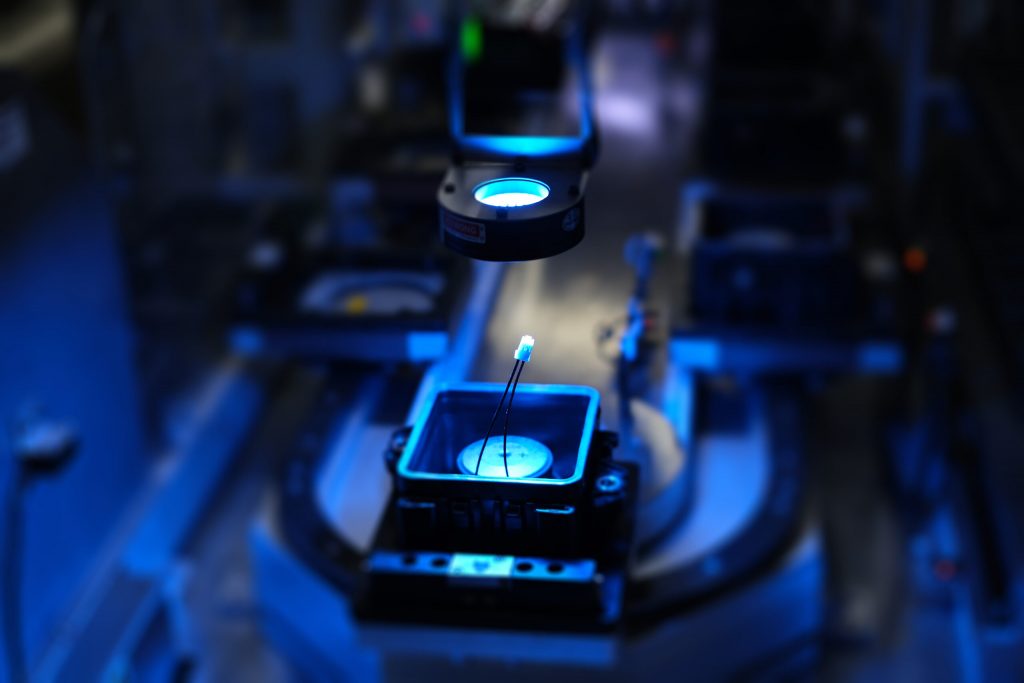

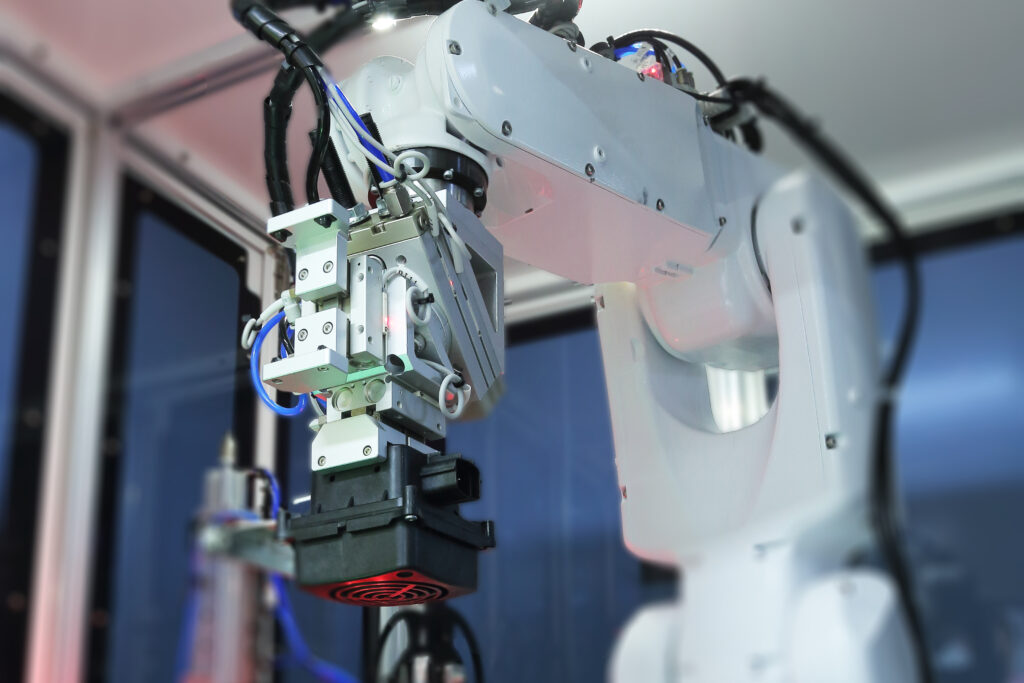

4. 自 动 产 线
自动产线 - 1
自动产线 - 2
