汽车饰灯

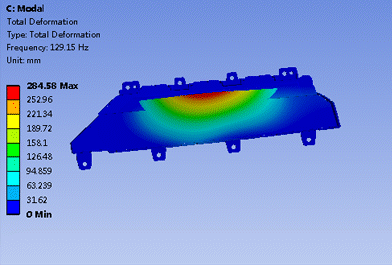

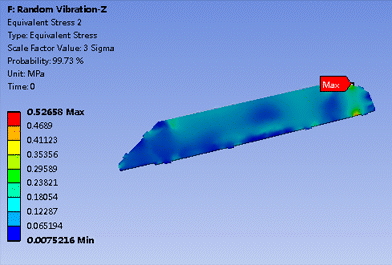

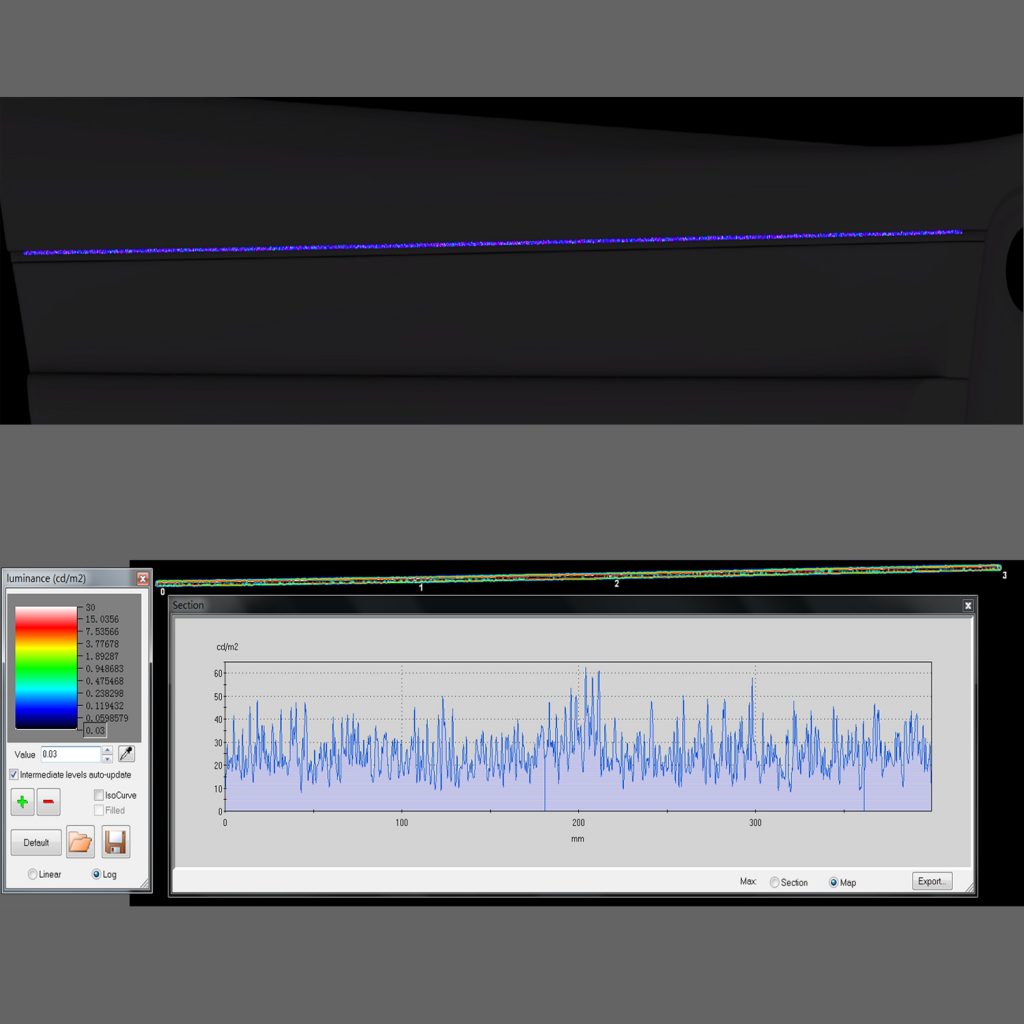

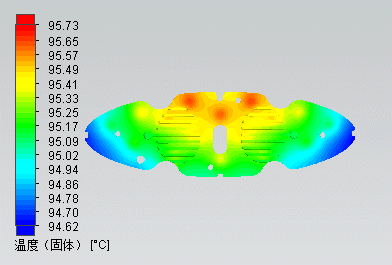

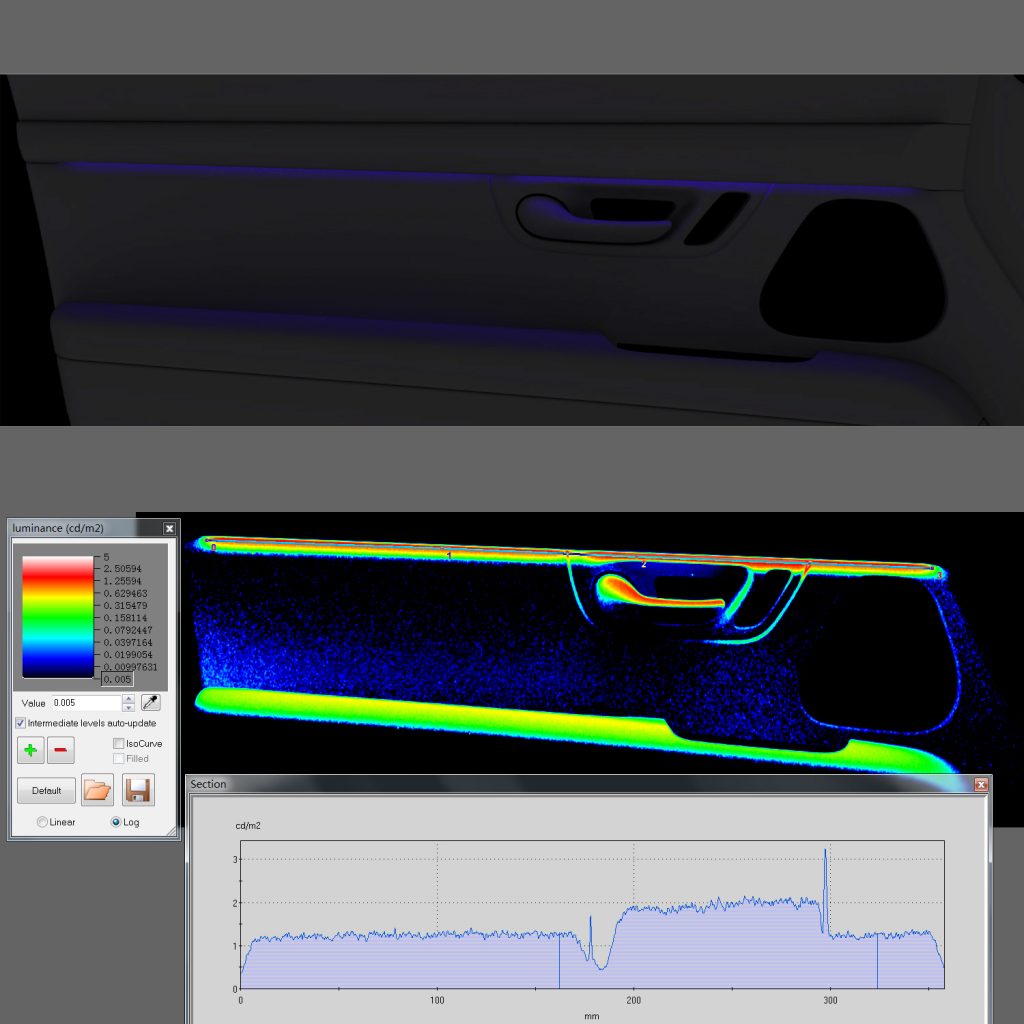

拥有进行独立光学，热学，雾气，振动以及结构的有限元分析和仿真能力，并由资深的专业工程师进行设计匹配。

? 支持Lin/Can通讯协议
? 支持定制化的律动设计和匹配

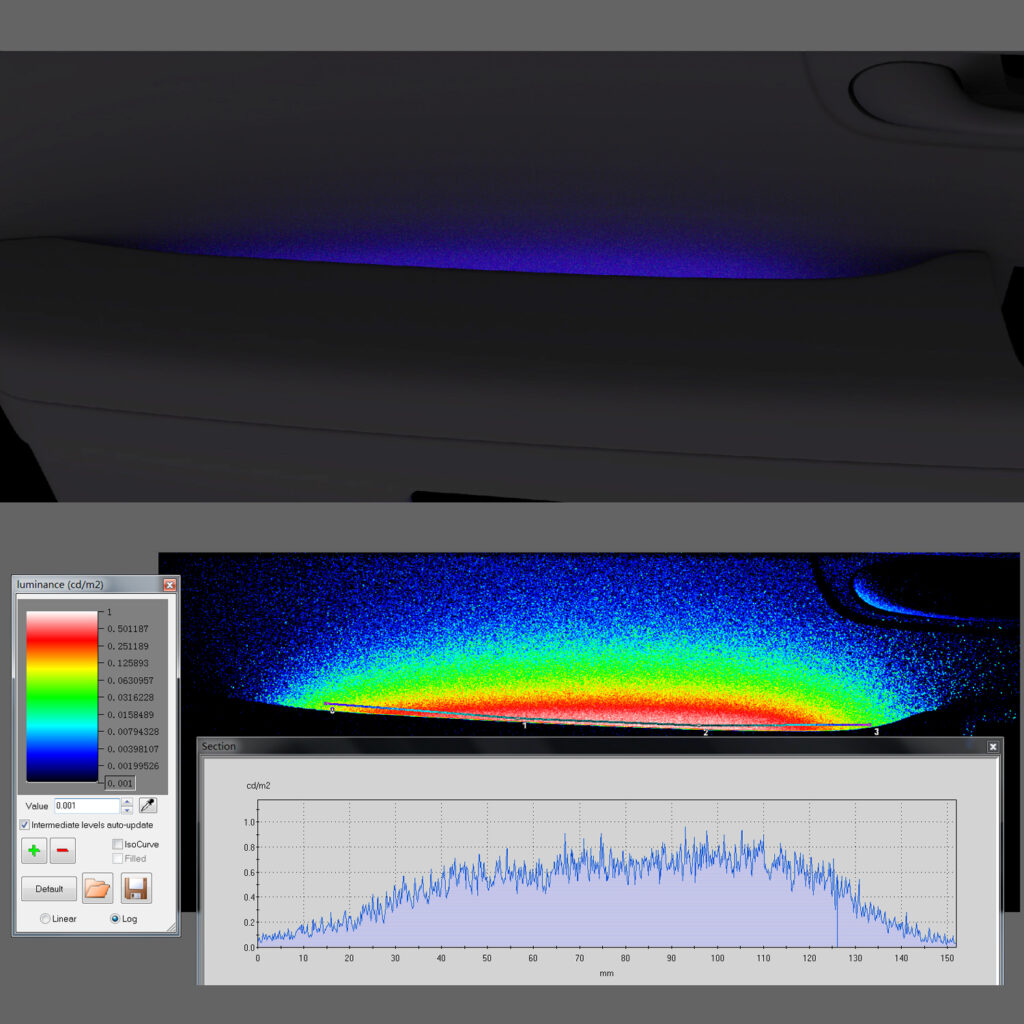

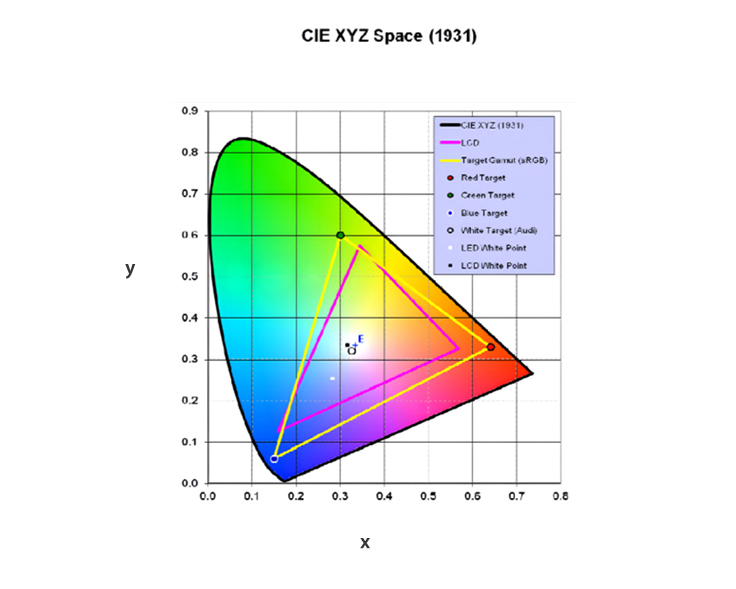

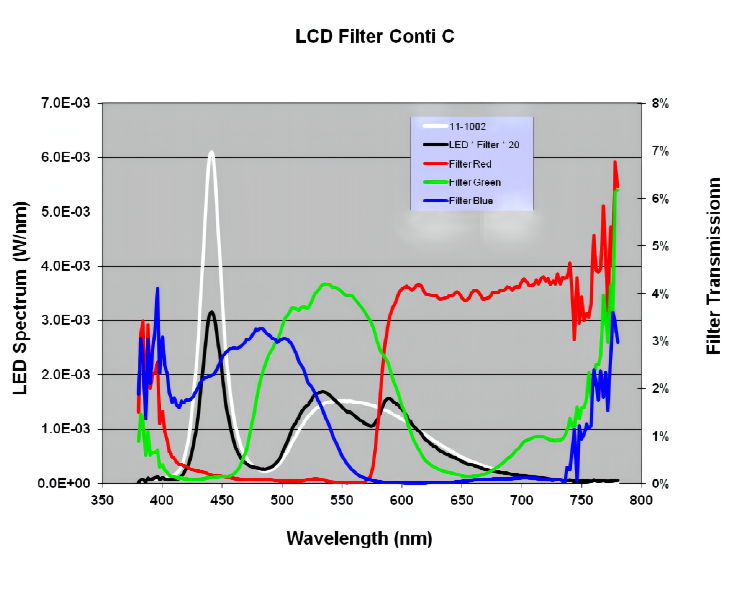

? 自有光学分析设备

产品

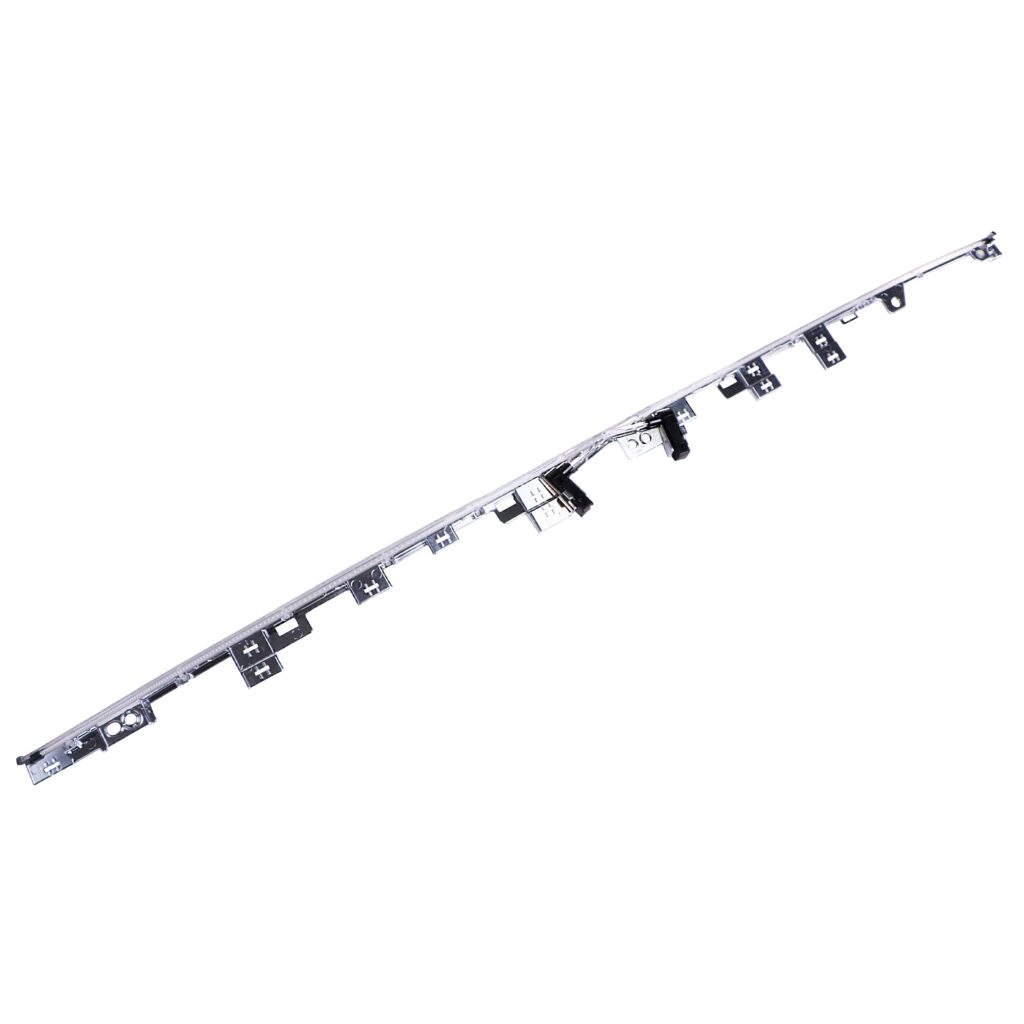

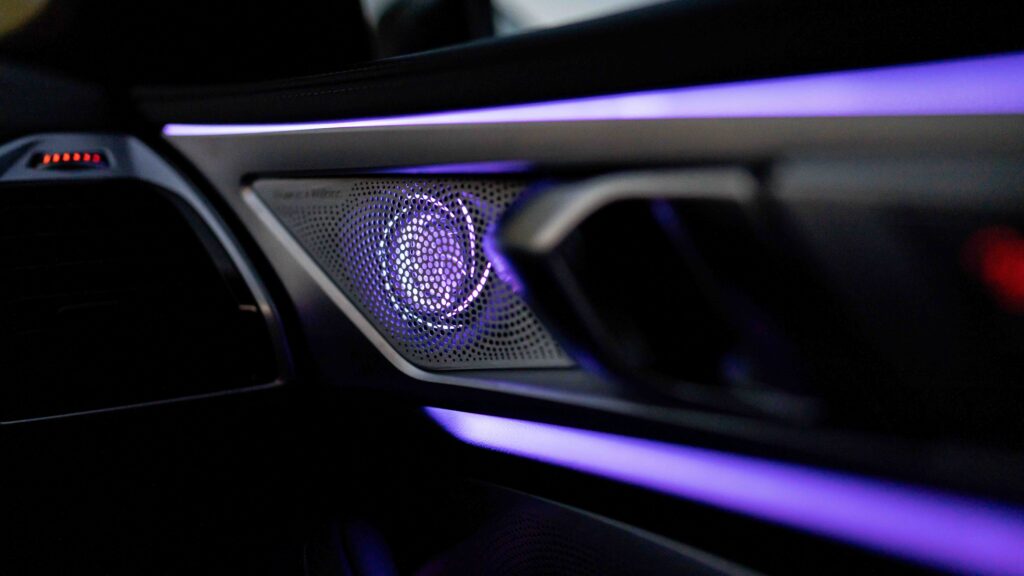

氛围灯

均匀度 ························································ 60%~70%
亮度 ························································ 5~20cd
工作电压······················ 9~16V (电池供电)
电池电压 ············································ DC12V
工作电流 ·········································· 20 mA
最大工作电流 ······························ 60 mA
工作温度 ············································ -40°C ~ +85°C
存储温度 ············································· -40°C ~ +85°C
湿度 ························································· 5%~45%

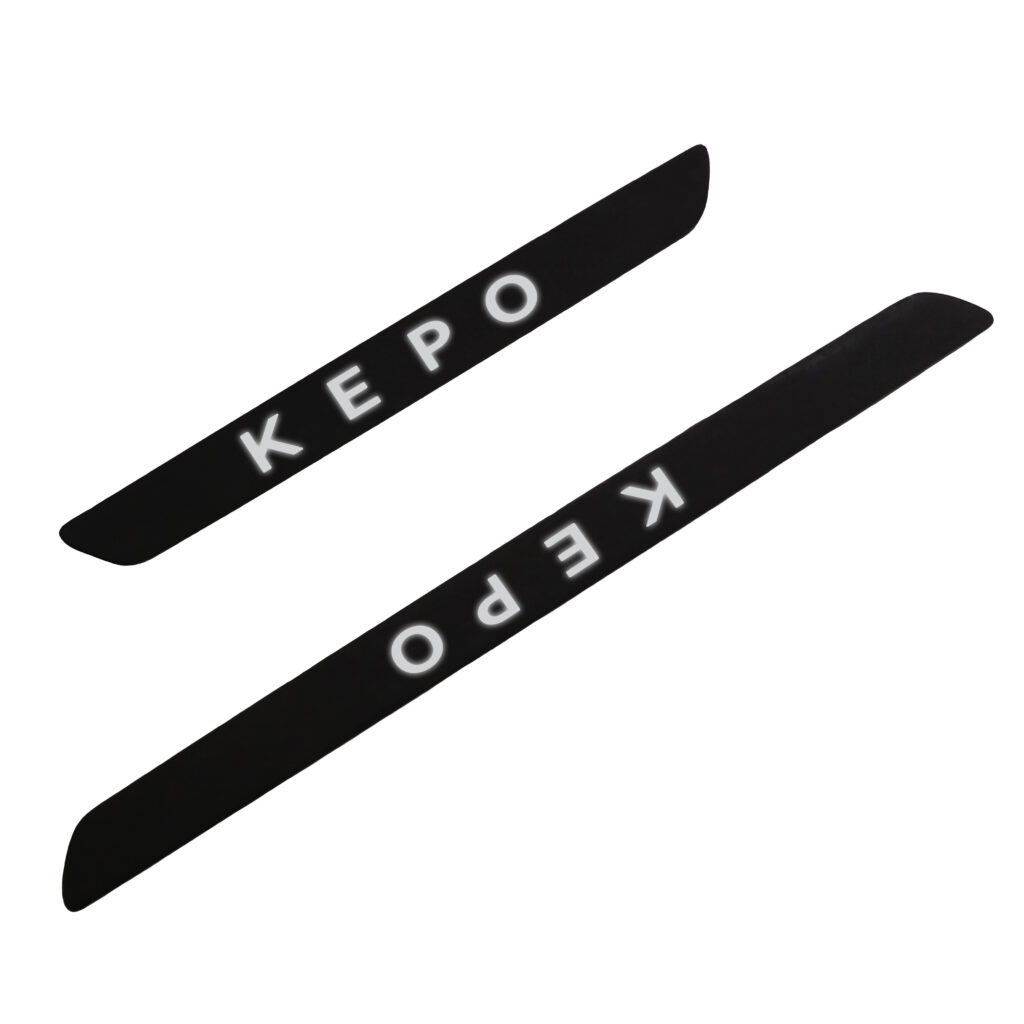

门槛灯

均匀度 ························································ 60%~70%
亮度 ························································· 5~20cd
工作电压 ···················· 9~16V (电池供电)
电池电压 ············································· DC12V
工作电流 ··········································· 60 mA
最大工作电流 ······························· 150 mA
工作温度 ············································ -40°C ~ +85°C
存储温度 ············································· -40°C ~ +85°C
湿度 ························································ 5%~95%

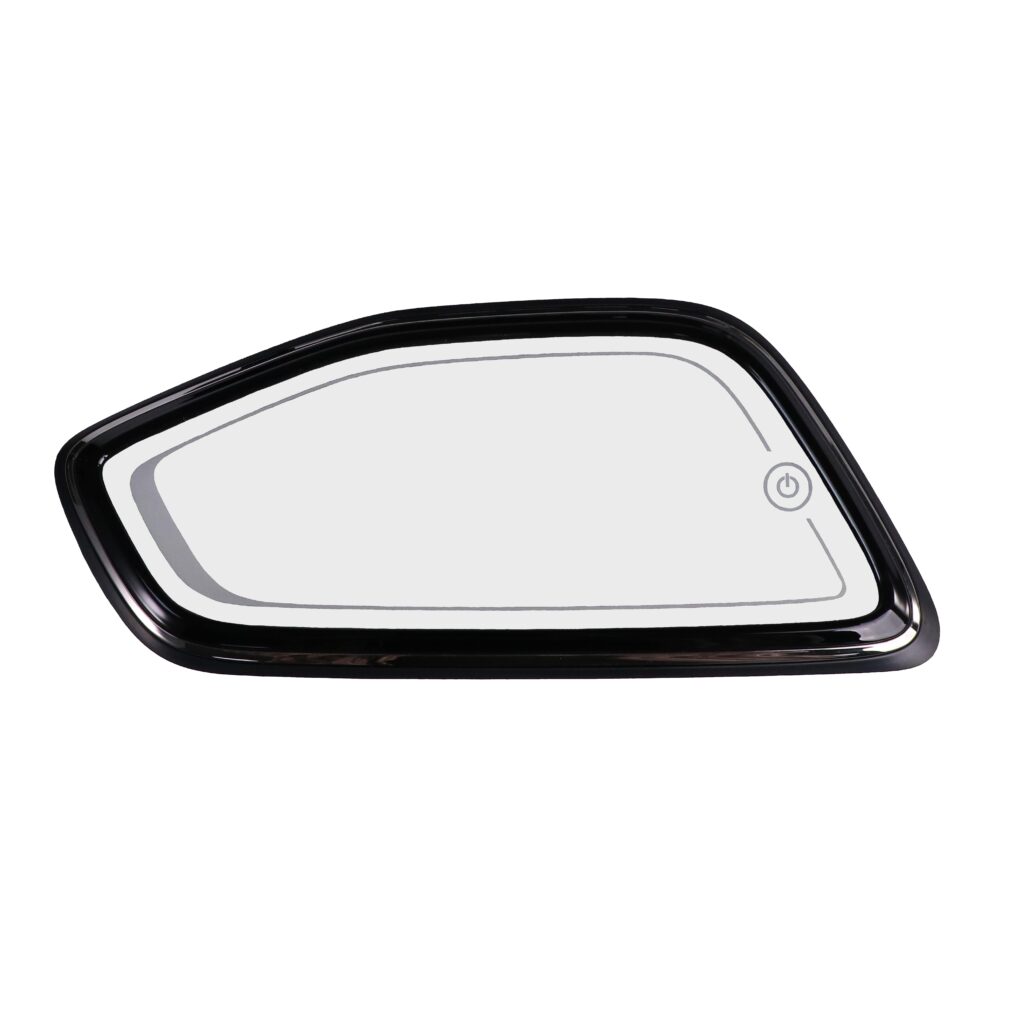

化妆镜灯

均匀度 ····························································· 60%~70%
亮度 ······························································ 5~20cd
工作电压 ···················· 9~16V (电池供电)
电池电压 ·················································· DC12V
工作电流 ················································ 60 mA
最大工作电流 ····································· 70 mA
工作温度 ············································ -40°C ~ +85°C
存储温度 ············································· -40°C ~ +85°C
湿度 ························································ 5%~95%
